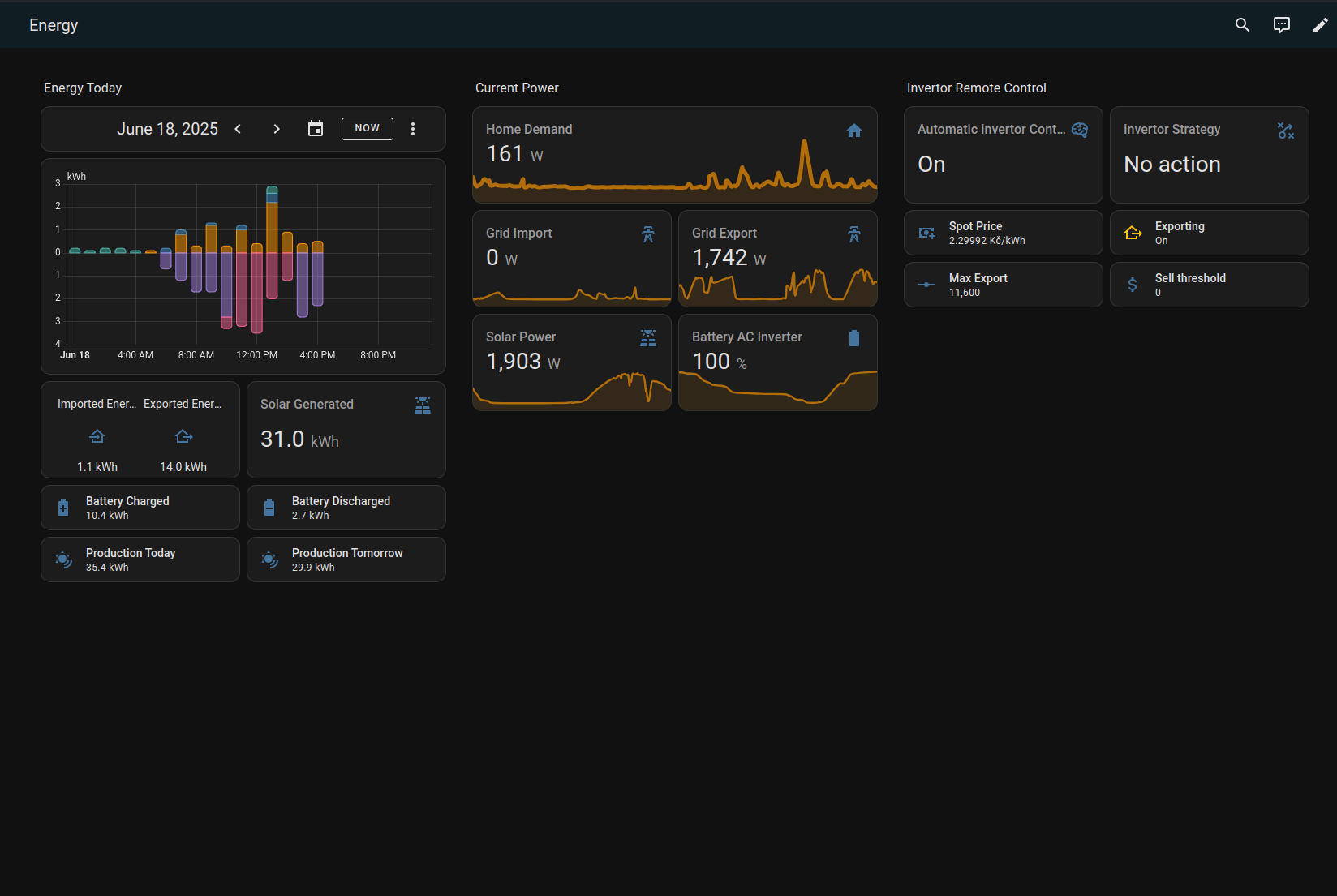

Custom control dashboard
You can use this yaml to create your own dashboard. I 'collected' this dashboards while browsing somewhere. Thank you original author. I added few tiles here and there.
views:
- title: Energy
path: energy
icon: mdi:sun-angle-outline
type: sections
sections:
- type: grid
cards:
- type: heading
heading: Energy Today
- type: energy-date-selection
action: default
- type: energy-usage-graph
action: default
- type: glance
entities:
- entity: sensor.solax_today_s_import_energy
name: Imported Energy
- entity: sensor.solax_today_s_export_energy
name: Exported Energy
layout_options:
grid_columns: 2
grid_rows: 2
- type: entity
entity: sensor.solax_today_s_solar_energy
name: Solar Generated
icon: mdi:solar-power-variant
- type: tile
entity: sensor.solax_battery_input_energy_today
name: Battery Charged
icon: mdi:battery-plus-variant
- type: tile
entity: sensor.solax_battery_output_energy_today
name: Battery Discharged
icon: mdi:battery-minus-variant
- type: tile
entity: sensor.energy_production_today_2
name: Production Today
icon: mdi:sun-wireless
features_position: bottom
vertical: false
- type: tile
entity: sensor.energy_production_tomorrow_2
name: Production Tomorrow
icon: mdi:sun-wireless
features_position: bottom
vertical: false
grid_options:
columns: 6
rows: 1
column_span: 1
- type: grid
cards:
- type: heading
heading: Current Power
- graph: line
type: sensor
entity: sensor.solax_house_load
detail: 2
name: Home Demand
layout_options:
grid_columns: full
icon: mdi:home
- graph: line
type: sensor
entity: sensor.solax_grid_import
detail: 2
name: Grid Import
icon: mdi:transmission-tower
- graph: line
type: sensor
entity: sensor.solax_grid_export
detail: 2
name: Grid Export
icon: mdi:transmission-tower
- graph: line
type: sensor
entity: sensor.solax_pv_power_total
detail: 2
name: Solar Power
icon: mdi:solar-power-variant
- graph: line
type: sensor
entity: sensor.solax_battery_capacity
detail: 2
layout_options:
grid_columns: 2
grid_rows: 2
name: Battery AC Inverter
- type: grid
cards:
- type: heading
heading_style: title
heading: Invertor Remote Control
- type: entity
entity: input_boolean.automatic_invertor_control_enabled
name: Automatic Invertor Control Enabled
- type: entity
entity: input_select.invertor_strategy
- type: tile
entity: sensor.current_spot_electricity_sell_price
features_position: bottom
vertical: false
name: Spot Price
- type: tile
entity: input_boolean.export_allowed
features_position: bottom
vertical: false
icon: mdi:home-export-outline
name: Exporting
grid_options:
columns: 6
rows: 1
tap_action:
action: none
icon_tap_action:
action: none
- type: tile
entity: input_number.maximum_export_allowed
features_position: bottom
vertical: false
name: Max Export
- type: tile
entity: input_number.export_price_threshold
features_position: bottom
vertical: false
icon: mdi:currency-usd
header:
layout: center
badges_position: bottom
max_columns: 4
cards: []
